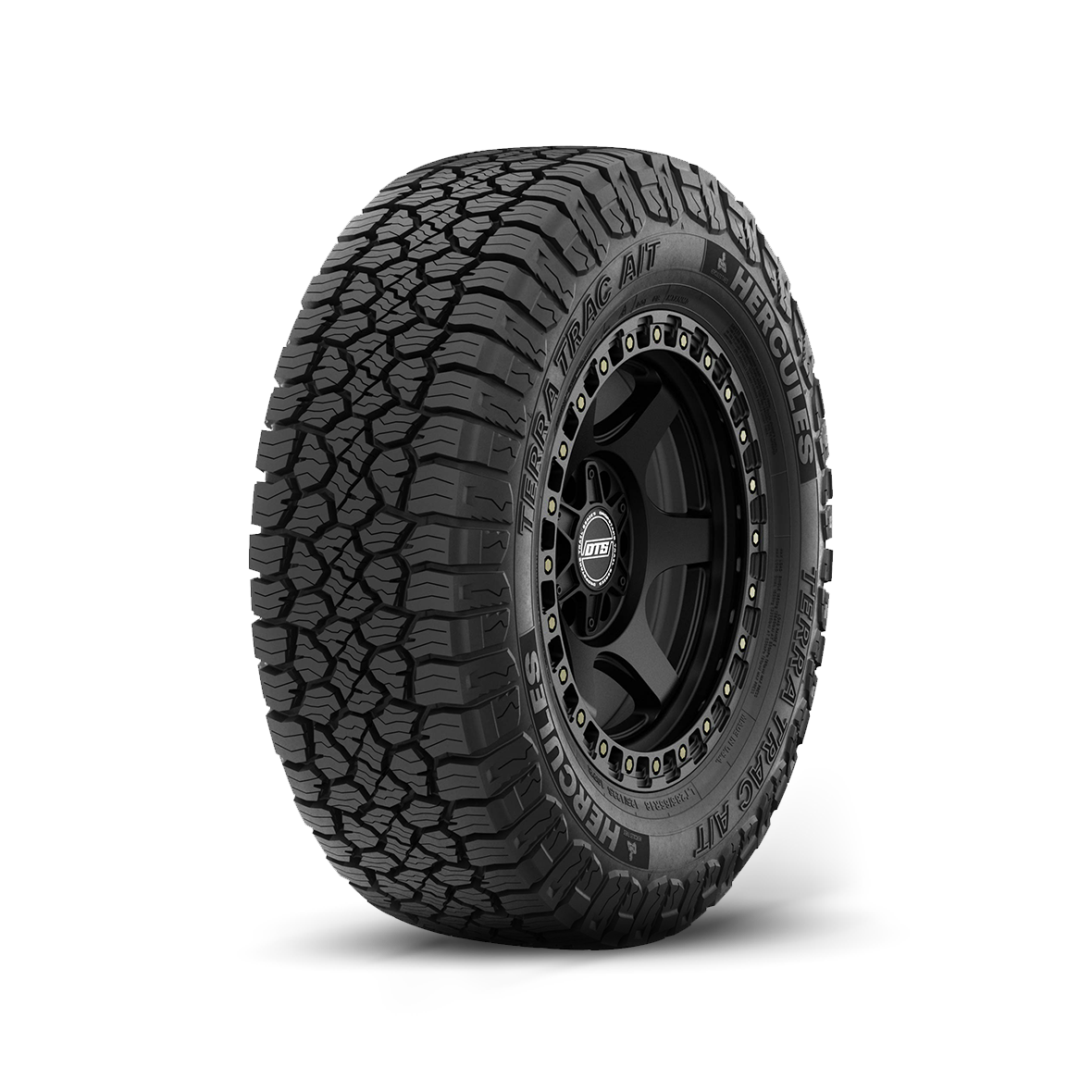

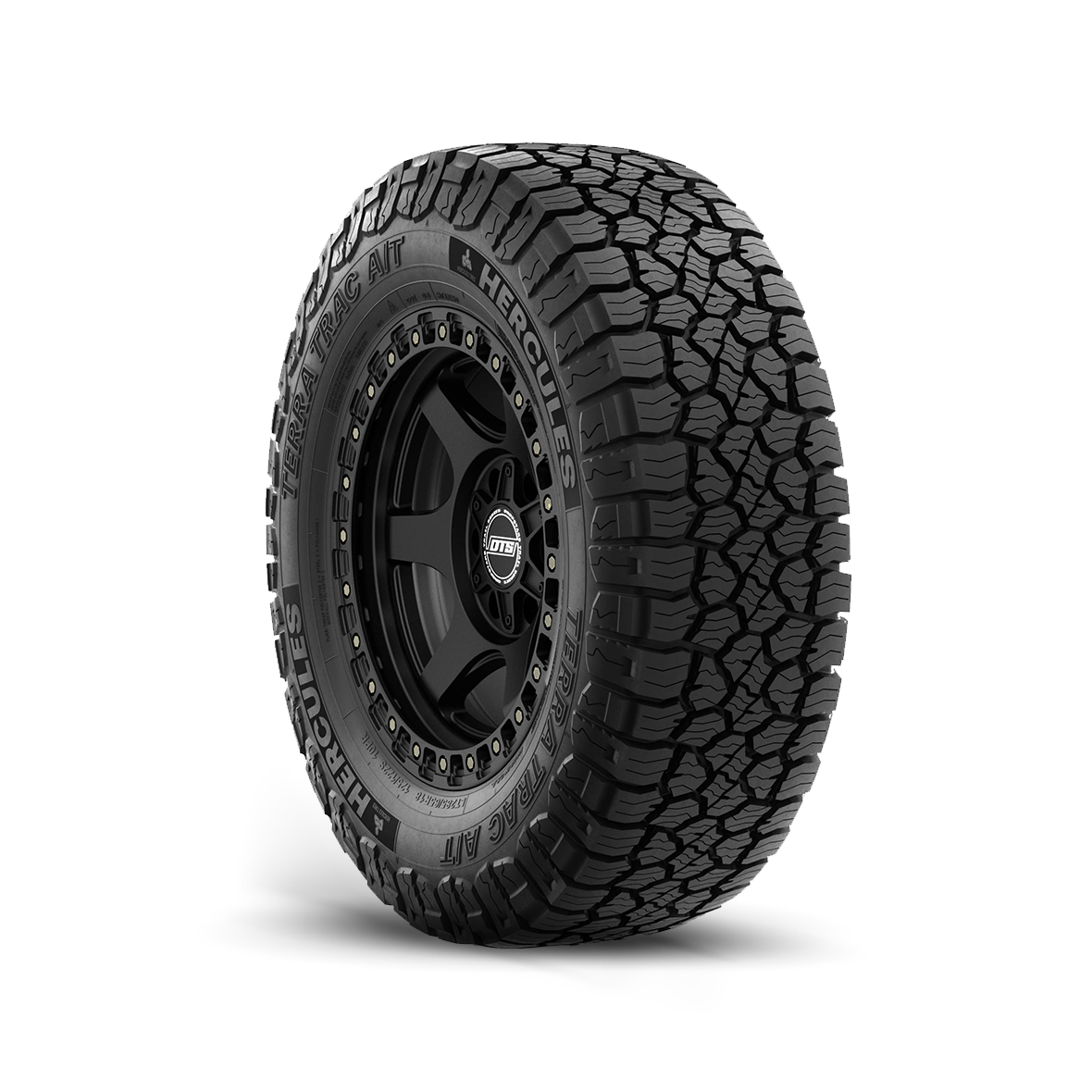

TERRA TRAC® AT X-VENTURE
Premium All-Terrain | All-Season | Light Truck & SUV
ROAD WARRIOR AND TRAIL BLAZER ROLLED INTO ONE. Enjoy the flexibility to choose your adventure with the new Terra Trac AT X-Venture. Whether that means hitting the road or the trail or choosing to do both. Packed with enhanced features, this rugged and willing warrior is equally at home on the road and off, delivering optimized traction on any surface. The Terra Trac AT X-Venture is also designed to be fully prepared to conquer wet or even harsh winter weather conditions like sleet, snow, and ice with its 3 Peak Mountain Snowflake (3PMS) certification delivering true peace-of-mind. Getting to the adventure is half the story of what make the Terra Trac AT X-Venture so appealing, it also allows drivers to show their individuality with a dual sidewall and shoulder design. So, if you’re looking for a bold and boundless tire that you can count on to get you there—wherever your there is—venture into the Terra Trac AT-X Venture, and forge ahead.
Features & Benefits
- Aggressive Dual Sidewall and Shoulder Design – deep lugs on the sidewall provide an aggressive appearance while the dual sidewall and shoulder design gives drivers a cost-effective way for flexible customization that enhances the individuality of their vehicle.
- Enhanced Profile Shape and Tread Block Formation–supports longevity of treadwear and enhanced vehicle stability when maneuvering both on and off road.

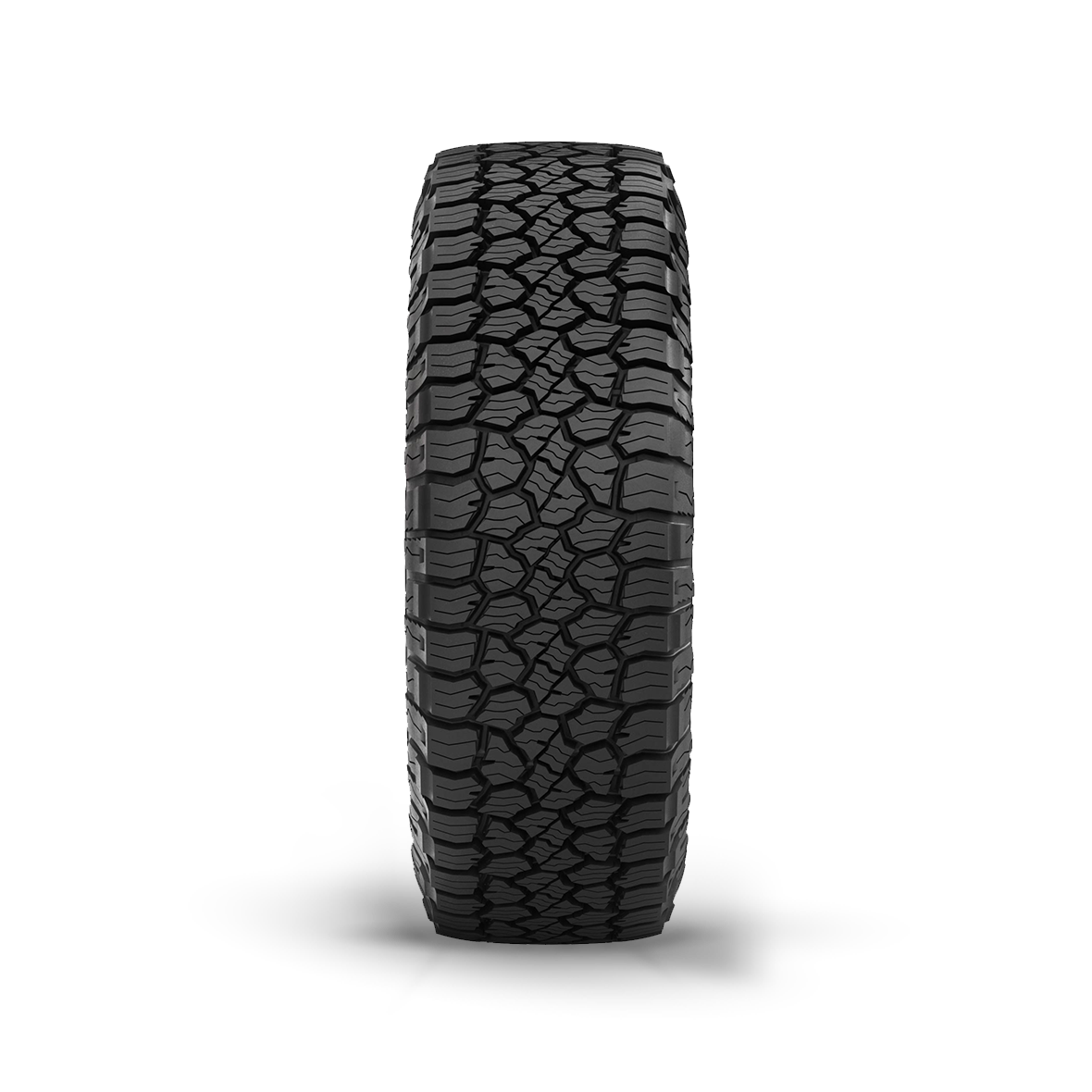

- Tusk Grooves – designed to create the perfect void to rubber ratio and keep the tread clear of mud and dirt through the support of stone ejector ribs in the tread grooves for all-terrain traction.
- Alternating Shoulder Scallops – built into the shoulder design this feature allows the tire to dig into tough terrains for increased traction.
- 3 Peak Mountain Snowflake Certified - meets required performance criteria in snow testing to be considered severe snow service-rated.
Key Features

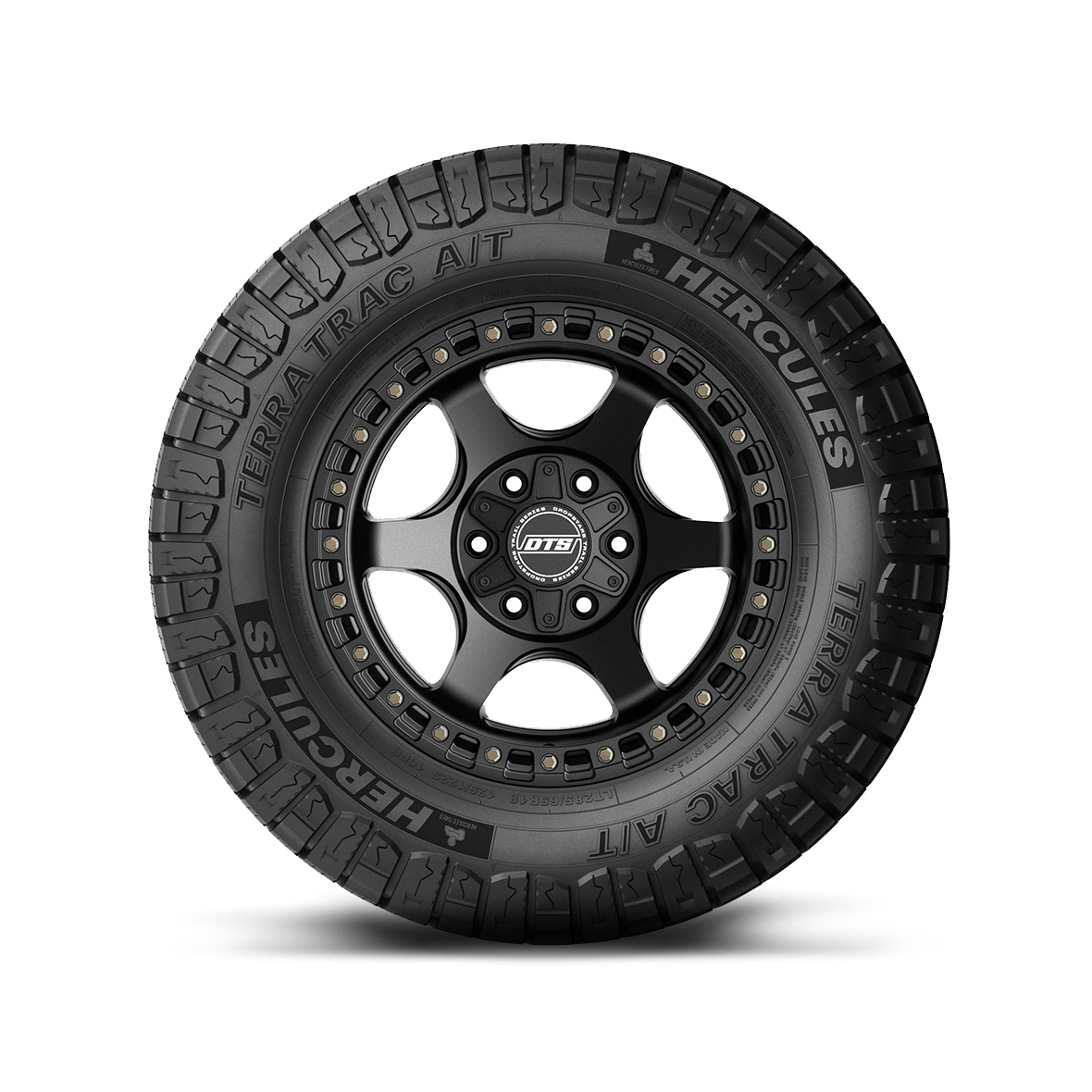

Dual Sidewall Design
Equips drivers with a cost-effective customization to enhance the individuality of their vehicle.
Max Off-Road All-Terrain Traction
Innovative tread block design provides superior stone-drilling resistance and cut-and-chip prevention in off-road conditions, increasing durability for higher torque vehicles.
Prepared Severe Weather
Severe snow service rated and certified to offer required performance criteria in snow.
Performance Promise Warranty
60K MILES Built to deliver 60,000 mi/100,000 km and protected under our Hercules Mileage Coverage Plan
ROAD HAZARD Covered by our industry-leading Road Hazard Protection Program, which provides free replacement for up to two years or the first 50% of tread life.
TRUST OUR RIDE TEST DRIVE If you are not completely satisfied with these tires, you may return them within 45 days to exchange them for a comparable set of Hercules brand tires.
TRACTION STANDARD The three-peak mountain snowflake symbol (3PMS) means that this tire meets certain requirements for providing traction in severe snow conditions.
Click to learn more about our industry leading performance promise.
| ITEM # | TIRE SIZE | LOAD INDEX | SPEED RATING | LOAD ID | SIDEWALL | UTQG | MIN RIM WIDTH (IN) | MAX RIM WIDTH (IN) | SINGLE MAX LOAD AT COLD INFLATION PRESSURE (LBS@PSI) | DUAL MAX LOAD AT COLD INFLATION PRESSURE (LBS@PSI) | TREAD DEPTH (1/32") | OVERALL WIDTH (IN) | OVERALL DIAMETER (IN) | WEIGHT (LBS) | STUD SIZE | PLY RATING |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 02733 | 30X9.50R15/6 | 104 | R | C | OWL | 6.50 | 8.50 | 1985@50 | N/A | 16.5 | 9.60 | 29.29 | 37.40 | - | - | |
| 02736 | 31X10.50R15/6 | 109 | R | C | OWL | 7.00 | 9.00 | 2270@50 | N/A | 16.5 | 10.60 | 30.20 | 43.12 | - | - | |
| 02801 | LT235/75R15/6 | 104/101 | R | C | OWL | 6.00 | 7.00 | 1985@50 | 1820@50 | 16.0 | 9.10 | 28.90 | 35.19 | - | - |
| ITEM # | TIRE SIZE | LOAD INDEX | SPEED RATING | LOAD ID | SIDEWALL | UTQG | MIN RIM WIDTH (IN) | MAX RIM WIDTH (IN) | SINGLE MAX LOAD AT COLD INFLATION PRESSURE (LBS@PSI) | DUAL MAX LOAD AT COLD INFLATION PRESSURE (LBS@PSI) | TREAD DEPTH (1/32") | OVERALL WIDTH (IN) | OVERALL DIAMETER (IN) | WEIGHT (LBS) | STUD SIZE | PLY RATING |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 02620 | 265/75R16 | 116 | T | SL | BW | 600 A B | 7.00 | 9.00 | 2756@44 | N/A | 14.0 | 10.50 | 31.57 | 37.00 | - | - |
| 02666 | LT215/85R16/10 | 115/112 | R | E | Raised Black Letter | 5.50 | 7.00 | 2680@80 | 2470@80 | 16.5 | 8.40 | 30.31 | 16.57 | - | - | |
| 02668 | LT225/75R16/10 | 115/112 | R | E | Raised Black Letter | 6.00 | 7.00 | 2680@80 | 2470@80 | 16.5 | 8.50 | 29.33 | 36.96 | - | - | |
| 02672 | LT235/85R16/10 | 120/116 | R | E | Raised Black Letter | 6.00 | 7.50 | 3042@80 | 2778@80 | 16.5 | 9.40 | 31.77 | 42.46 | - | - | |
| 02716 | LT245/75R16/10 | 120/116 | R | E | OWL | 6.50 | 8.00 | 3042@80 | 2778@80 | 16.5 | 9.70 | 30.35 | 43.56 | - | - | |
| 02730 | LT265/70R16/10 | 121/118 | R | E | OWL | 7.00 | 8.50 | 3195@80 | 2910@80 | 16.5 | 10.90 | 30.63 | 48.00 | - | - | |
| 02724 | LT265/75R16/10 | 123/120 | R | E | OWL | 7.00 | 8.00 | 3415@80 | 3085@80 | 16.5 | 10.60 | 31.61 | 49.83 | - | - | |
| 02697 | LT285/75R16/10 | 126/123 | R | E | Raised Black Letter | 7.50 | 9.00 | 3750@80 | 3415@80 | 17.0 | 11.50 | 32.60 | 51.61 | - | - |
| ITEM # | TIRE SIZE | LOAD INDEX | SPEED RATING | LOAD ID | SIDEWALL | UTQG | MIN RIM WIDTH (IN) | MAX RIM WIDTH (IN) | SINGLE MAX LOAD AT COLD INFLATION PRESSURE (LBS@PSI) | DUAL MAX LOAD AT COLD INFLATION PRESSURE (LBS@PSI) | TREAD DEPTH (1/32") | OVERALL WIDTH (IN) | OVERALL DIAMETER (IN) | WEIGHT (LBS) | STUD SIZE | PLY RATING |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 02583 | 255/65R17 | 110 | T | SL | BW | 600 A B | 7.00 | 9.00 | 2337@44 | N/A | 13.0 | 10.20 | 30.16 | 36.00 | - | - |
| 02586 | 255/70R17 | 112 | T | SL | BW | 600 A B | 6.50 | 8.50 | 2469@44 | N/A | 14.0 | 10.20 | 31.18 | 38.00 | - | - |
| 02654 | 255/75R17 | 115 | T | SL | BW | 600 A B | 6.50 | 8.50 | 2679@44 | N/A | 14.0 | 10.00 | 31.97 | 37.00 | - | - |
| 02590 | 265/65R17 | 112 | T | SL | BW | 600 A B | 7.50 | 9.50 | 2469@44 | N/A | 13.0 | 10.60 | 30.59 | 38.00 | - | - |
| 02670 | LT235/80R17/10 | 120/117 | R | E | Raised Black Letter | 6.00 | 7.50 | 3085@80 | 2835@80 | 16.5 | 9.20 | 31.77 | 41.58 | - | - | |
| 02674 | LT245/70R17/10 | 119/116 | S | E | Raised Black Letter | 6.50 | 8.00 | 3000@80 | 2755@80 | 16.5 | 9.80 | 30.55 | 44.44 | - | - | |
| 02718 | LT245/75R17/10 | 121/118 | S | E | OWL | 6.50 | 7.50 | 3195@80 | 2910@80 | 16.0 | 10.00 | 31.50 | 43.78 | - | - | |
| 02722 | LT265/70R17/10 | 121/118 | S | E | OWL | 7.00 | 8.50 | 3195@80 | 2910@80 | 16.5 | 10.90 | 31.65 | 49.94 | - | - | |
| 02678 | LT275/70R17/10 | 121/118 | R | E | Raised Black Letter | 7.00 | 8.50 | 3195@80 | 2910@80 | 16.5 | 11.00 | 32.17 | 49.17 | - | - | |
| 02695 | LT285/70R17/10 | 121/118 | S | E | Raised Black Letter | 7.50 | 9.00 | 3195@80 | 2910@80 | 17.0 | 11.40 | 32.83 | 60.32 | - | - | |
| 02699 | LT315/70R17/10 | 121/118 | S | E | Raised Black Letter | 8.00 | 11.00 | 3195@65 | 2910@65 | 17.0 | 12.60 | 34.33 | 60.28 | - | - | |
| 02632 | P285/70R17 | 117 | T | SL | BW | 600 A B | 7.50 | 9.50 | 2883@44 | N/A | 14.0 | 11.50 | 32.76 | 44.66 | - | - |
| ITEM # | TIRE SIZE | LOAD INDEX | SPEED RATING | LOAD ID | SIDEWALL | UTQG | MIN RIM WIDTH (IN) | MAX RIM WIDTH (IN) | SINGLE MAX LOAD AT COLD INFLATION PRESSURE (LBS@PSI) | DUAL MAX LOAD AT COLD INFLATION PRESSURE (LBS@PSI) | TREAD DEPTH (1/32") | OVERALL WIDTH (IN) | OVERALL DIAMETER (IN) | WEIGHT (LBS) | STUD SIZE | PLY RATING |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 02708 | 35X12.50R18/12 | 128 | Q | F | Raised Black Letter | 8.50 | 11.00 | 3970@80 | N/A | 16.5 | 12.50 | 34.65 | 61.49 | - | - | |
| 02676 | LT265/65R18/10 | 122/119 | R | E | Raised Black Letter | 7.50 | 9.50 | 3305@80 | 3000@80 | 16.0 | 10.70 | 31.54 | 47.96 | - | - | |
| 02685 | LT265/70R18/10 | 124/121 | S | E | Raised Black Letter | 7.00 | 9.00 | 3525@80 | 3195@80 | 16.5 | 10.70 | 32.64 | 49.83 | - | - | |
| 02726 | LT275/65R18/10 | 123/120 | S | E | OWL | 7.50 | 9.00 | 3415@80 | 3085@80 | 16.0 | 11.10 | 32.09 | 51.26 | - | - | |
| 02728 | LT275/70R18/10 | 125/122 | S | E | OWL | 7.00 | 8.50 | 3640@80 | 3305@80 | 16.0 | 11.10 | 33.23 | 56.54 | - | - | |
| 02693 | LT285/65R18/10 | 125/122 | S | E | Raised Black Letter | 8.00 | 10.00 | 3640@80 | 3305@80 | 16.0 | 11.60 | 32.56 | 54.59 | - | - |
| ITEM # | TIRE SIZE | LOAD INDEX | SPEED RATING | LOAD ID | SIDEWALL | UTQG | MIN RIM WIDTH (IN) | MAX RIM WIDTH (IN) | SINGLE MAX LOAD AT COLD INFLATION PRESSURE (LBS@PSI) | DUAL MAX LOAD AT COLD INFLATION PRESSURE (LBS@PSI) | TREAD DEPTH (1/32") | OVERALL WIDTH (IN) | OVERALL DIAMETER (IN) | WEIGHT (LBS) | STUD SIZE | PLY RATING |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 02712 | 35X12.50R20/12 | 125 | Q | F | Raised Black Letter | 8.50 | 11.00 | 3640@80 | N/A | 16.5 | 12.50 | 34.65 | 62.36 | - | - | |
| 02683 | LT265/60R20/10 | 121/118 | R | E | Raised Black Letter | 7.50 | 9.50 | 3195@80 | 2910@80 | 16.0 | 10.70 | 32.52 | 56.32 | - | - | |
| 02701 | LT275/55R20/10 | 120/117 | S | E | Raised Black Letter | 7.50 | 9.50 | 3085@80 | 2835@80 | 16.0 | 11.20 | 31.89 | 54.71 | - | - | |
| 02704 | LT275/60R20/10 | 123/120 | S | E | Raised Black Letter | 7.50 | 9.50 | 3415@80 | 3085@80 | 16.0 | 11.00 | 32.99 | 56.12 | - | - | |
| 02687 | LT275/65R20/10 | 126/123 | S | E | Raised Black Letter | 7.50 | 9.50 | 3750@80 | 3415@80 | 16.0 | 11.10 | 34.21 | 55.22 | - | - | |
| 02689 | LT285/55R20/10 | 122/119 | R | E | Raised Black Letter | 8.00 | 10.00 | 3305@80 | 3000@80 | 16.0 | 11.70 | 32.36 | 58.21 | - | - | |
| 02706 | LT285/60R20/10 | 125/122 | S | E | Raised Black Letter | 8.00 | 10.00 | 3640@80 | 3305@80 | 16.0 | 11.30 | 33.70 | 59.84 | - | - | |
| 02714 | LT305/55R20/12 | 125/122 | Q | F | Raised Black Letter | 8.50 | 11.00 | 3640@80 | 3305@80 | 16.0 | 12.20 | 33.35 | 58.19 | - | - |
